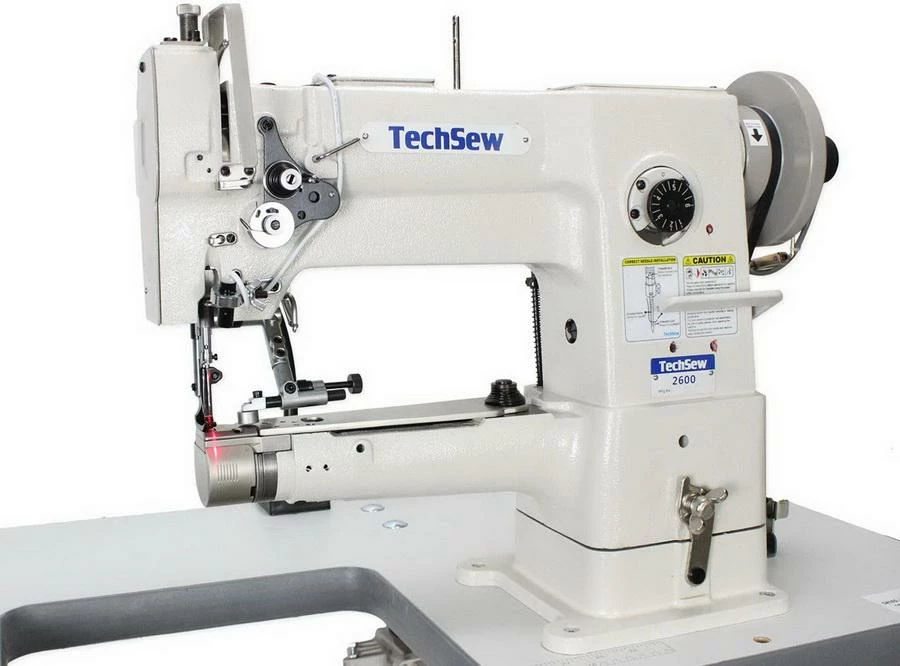

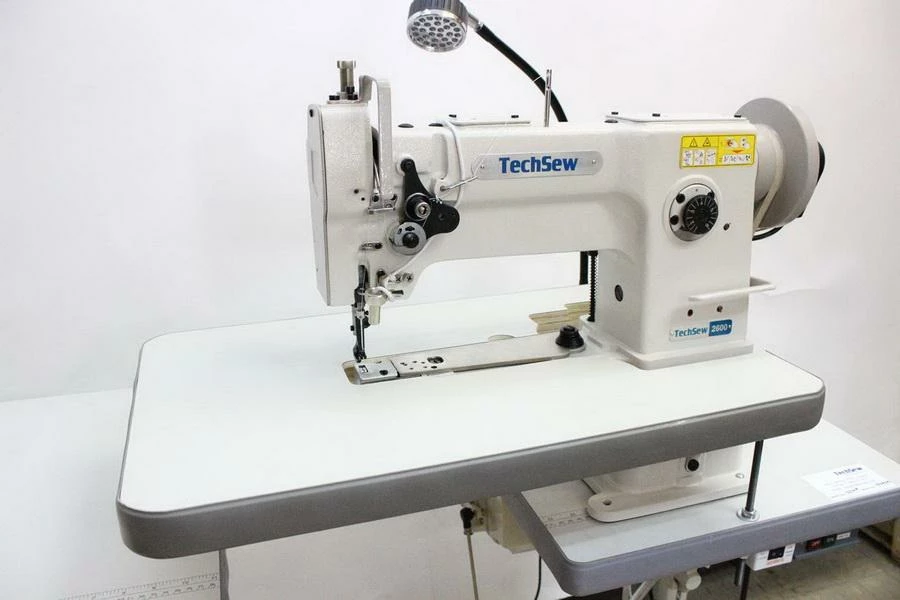

Techsew 2600-B Pro Narrow Cylinder Large Bobbin Compound Feed Industrial Sewing Machine
The Techsew 2600 PRO is designed for sewing wallets, purses, leather bags, chaps, jackets, vests, handbags, belts, upholstery, saddlebags, boots as well as automobile and boat covers, sails, tents, awnings, luggage, orthopedics appliances, sports equipment and more. The 2600 PRO features a narrow cylinder arm which is ideal for sewing into tight areas and insides of leather bags. The 2600 PRO features the latest in sewing technology, including the SmartServo-NP motor, TLG Laser Guide and more.
What’s Included
Includes:
- Needle Position Motor: The Techsew SmartServo-NP is an automatic needle positioning motor which saves you tons of time and effort while sewing. This powerful and versatile motor will automatically lift the needle at the end of a seam, or automatically leave it in the bottom position. This will eliminate the need to constantly turn your handwheel to position your needle.

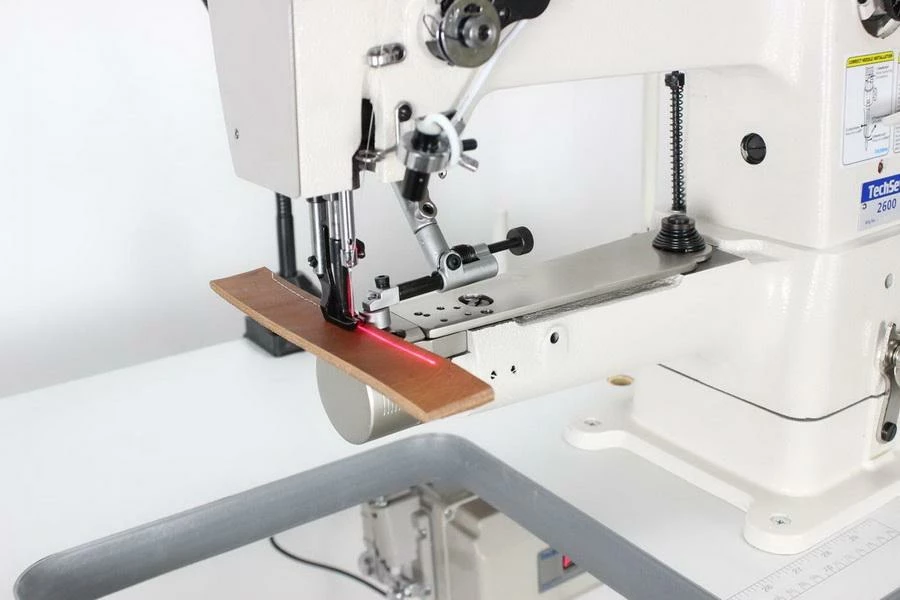

- TLG Laser Guide: The Techsew TLG Laser Guide provides a perfectly straight laser guided line directly in front of your needle. You’ll get a perfectly straight seam every time by sewing right along the laser guided line.
Also Includes
- Left toe zipper foot – for sewing close to the edge or around hardware
- Large spool of Techsew premium bonded nylon thread
- 3 pkgs. of premium needles
- TS-28 LED work lamp
- 8 Bobbins
Features and Specifications
Features
- Narrow cylinder arm diameter of 1 7/8″
- Compound walking-foot (alternating presser feet + needle feed + feed dog) to help feed thick & bulky materials
- Large double-capacity bobbin
- Includes the Techsew SmartServo Motor for complete control at any stitching speed – great for novice, amateur or experienced sewers
- Reverse Feed to reinforce stitching
- Reinforced U-Table
- Uses needle type 135X17, sizes #18 to #23
- Allows for use of thread up to size #138
- Includes complete table, motor, lamp, bobbin winder, needles, bobbins, tools, oiler, instruction manual
- Includes Limited Lifetime Warranty and FREE technical support for the life of your machine
- Machine comes inspected, oiled, adjusted and READY TO SEW
Specifications
- Presser foot clearance: 5/8″ (16mm)
- Sewing capacity: 3/8″ (10mm)
- Maximum stitch length: 6mm
- Cylinder Bed Length: 10.5″
- Cylinder Bed Diameter: 1 7/8″
- Maximum sewing speed: 2200SPM
- Needle Sizes: #18 to #23
- Thread sizes: #45 to #138
- SmartServo-NP Motor: 800W, 1HP, 110V
- Weight: 200 lbs.
- Dimensions: 47x21x45″

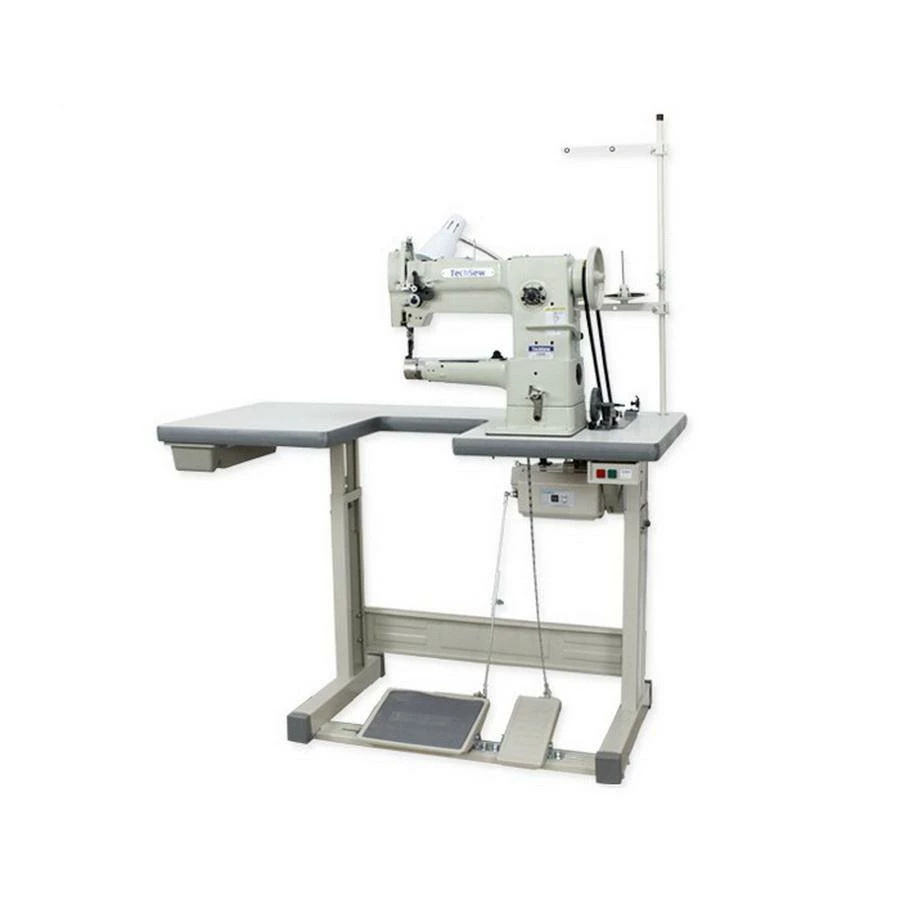

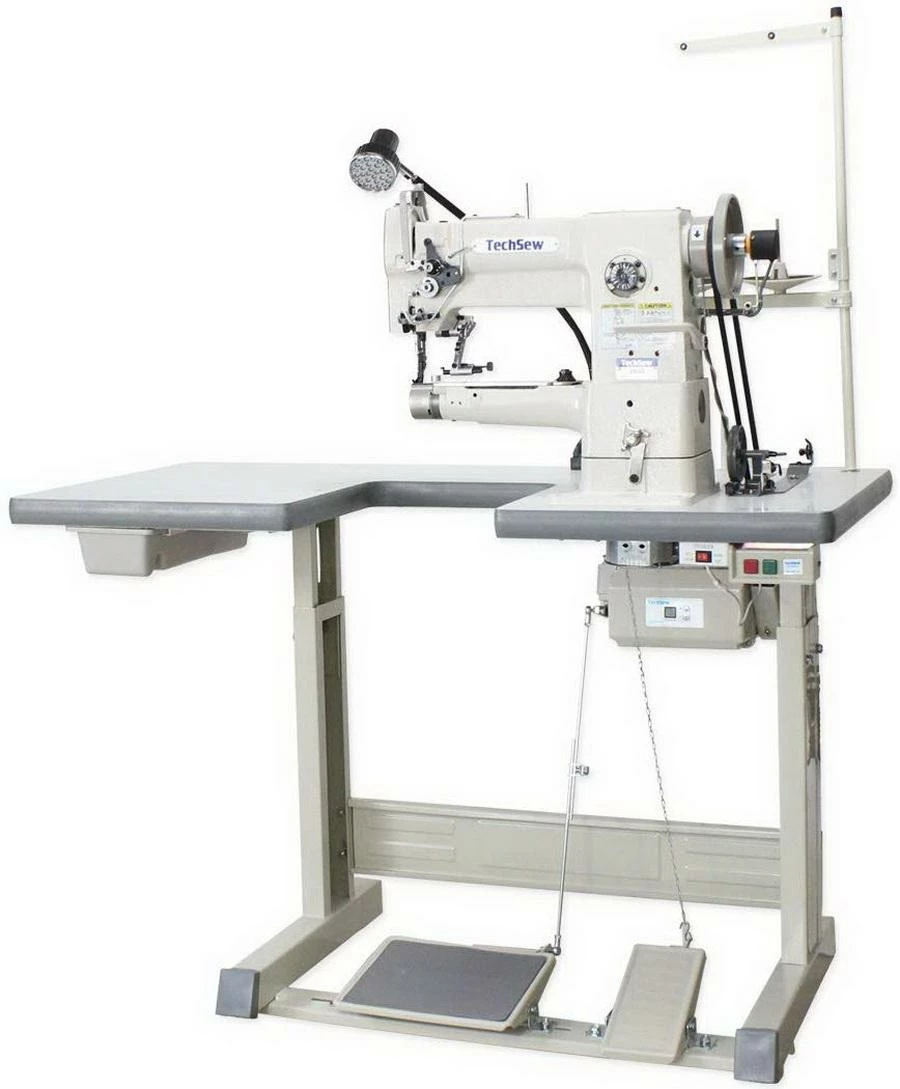

Includes assembled table & adjustable speed servo motor
