5 Year Limited Warranty on Juki Machines
Juki America, Inc. warrants this Product for a period of five (5) years against defective materials and/or workmanship, two (2) years on motors, light assembly, wiring, switches, speed control and electrical components.

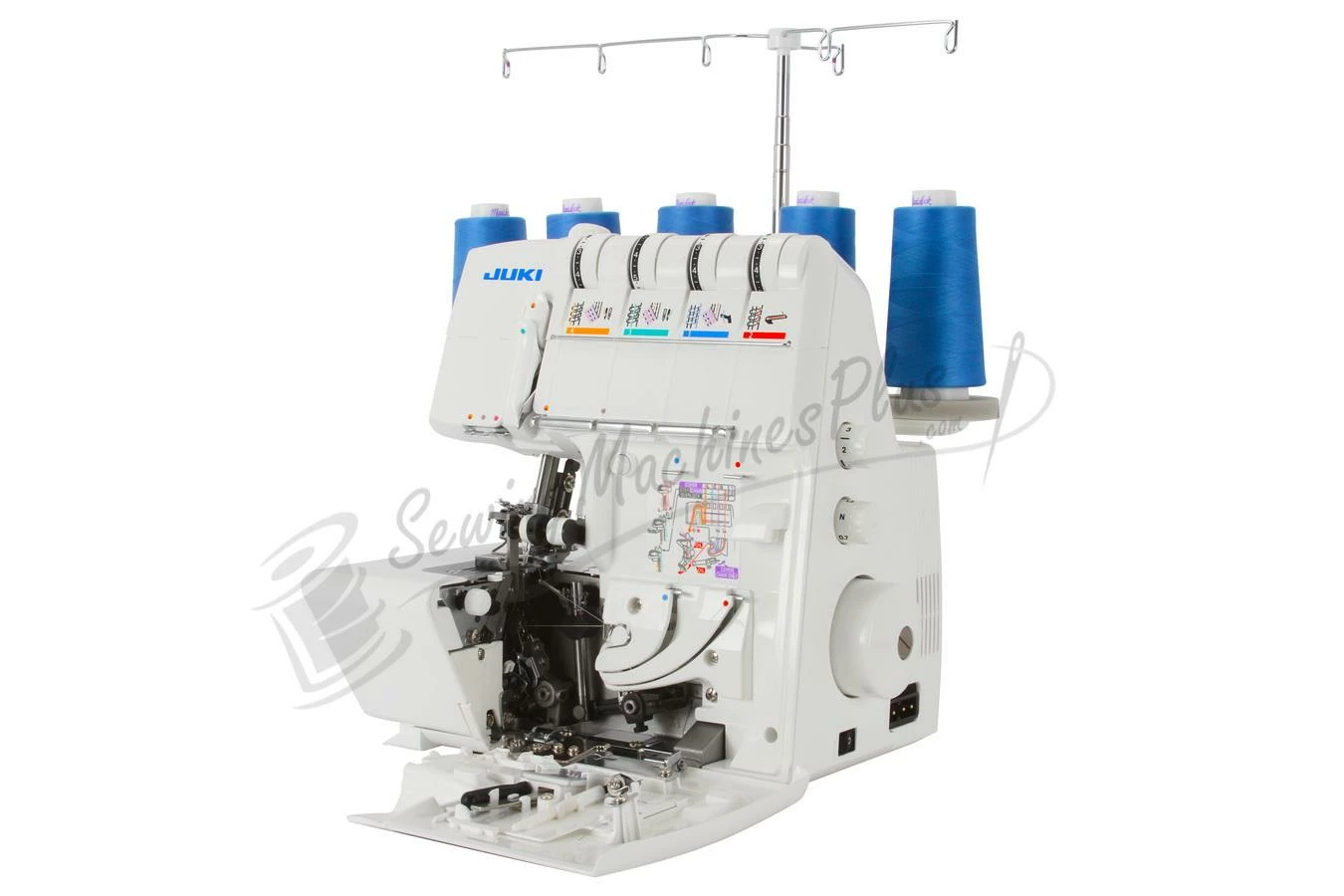

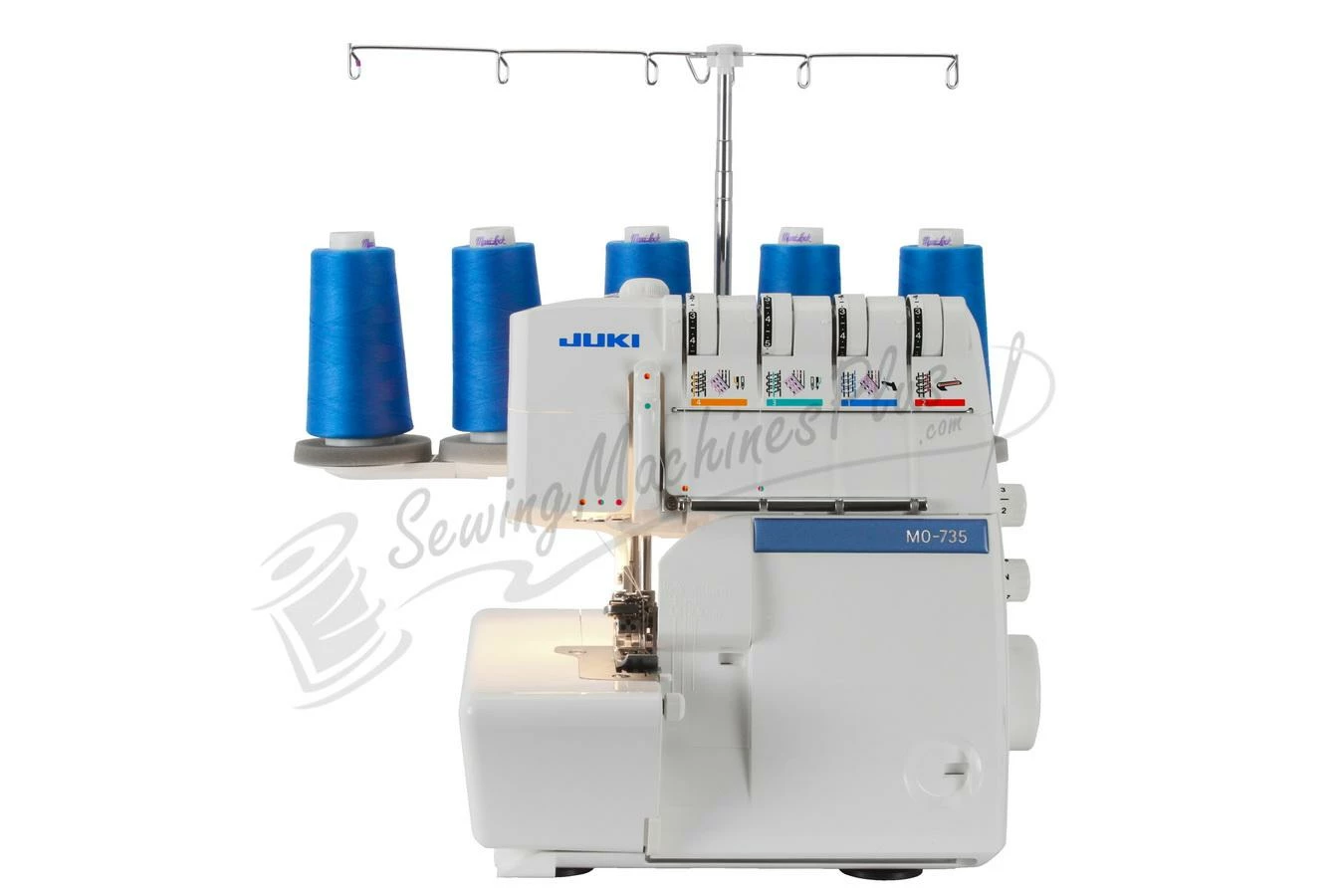

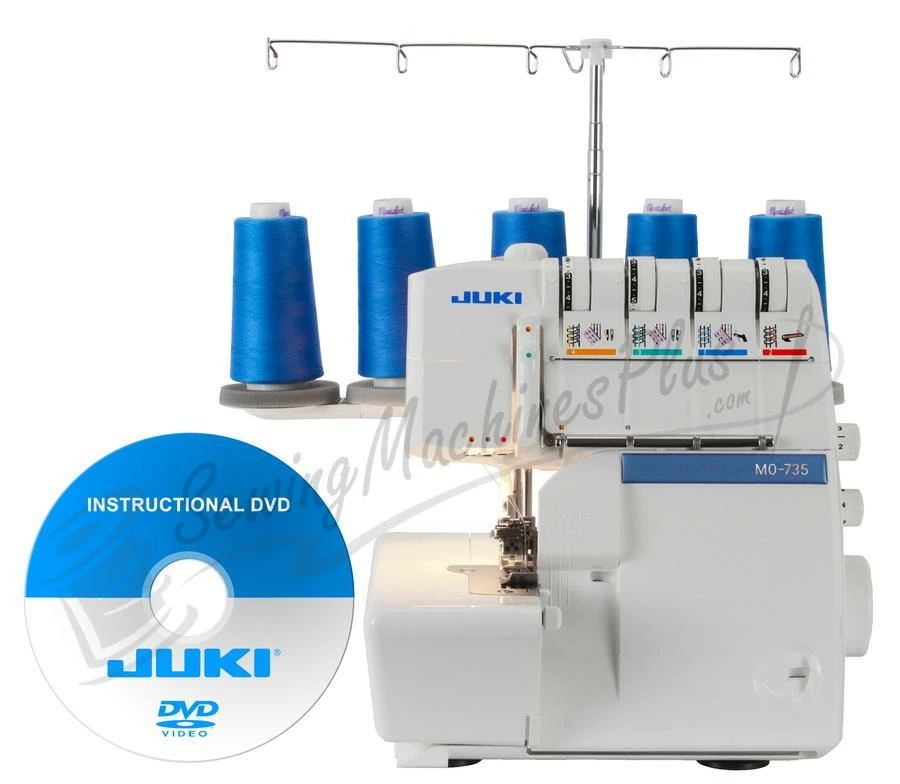

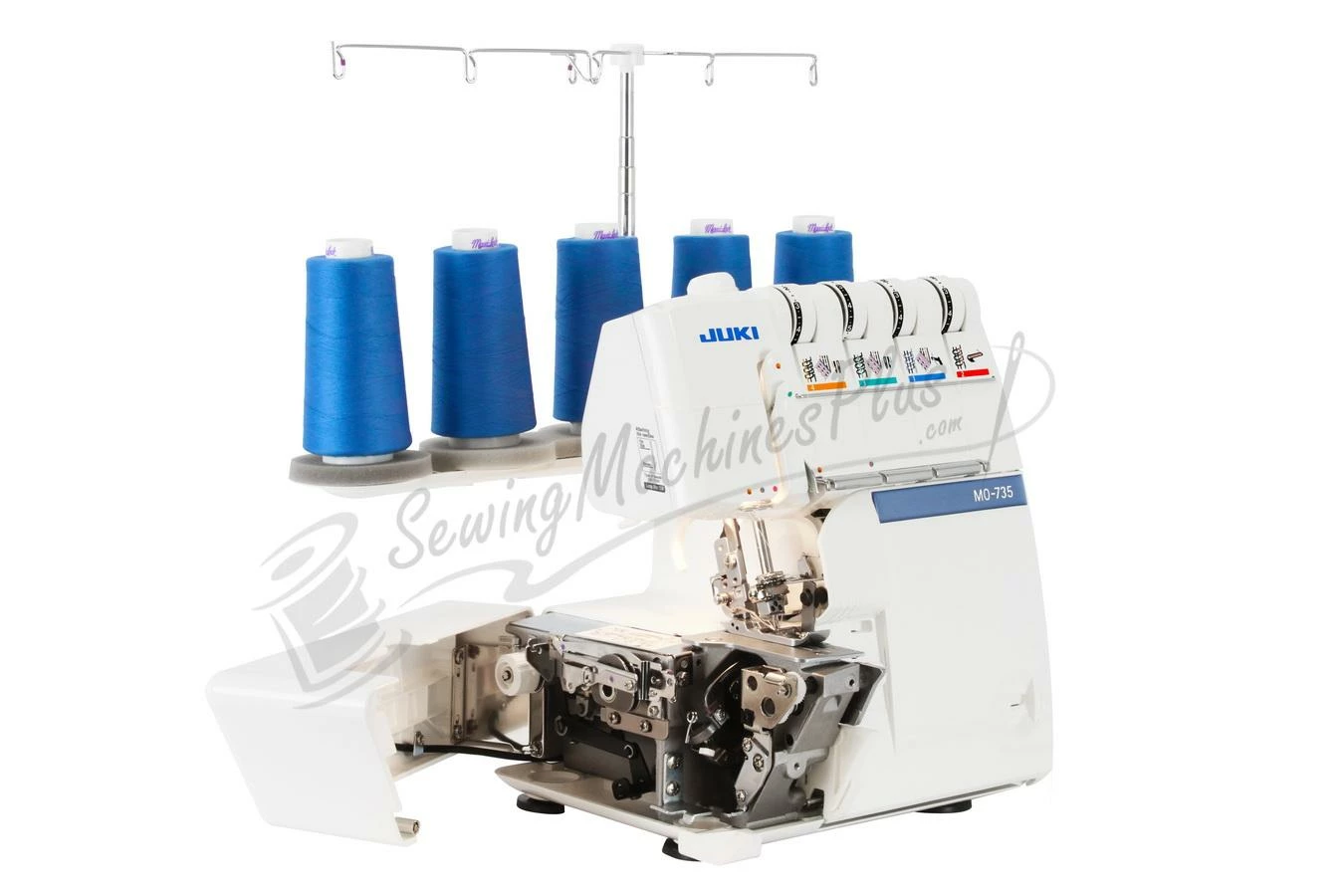

Juki MO-735 2/3/4/5 Thread Serger Overlock Machine
With the 24 stitch options available on the Juki MO-735, you can achieve virtually every serger technique and decorative stitch you’ve imagined!
Create the latest sophisticated styles, trendy sportswear, stretchy active wear, adorable childrens wear, decorative home fashions and more! With the MO-735 you can expand your sewing capabilities to include advanced applications such as, a chainstitch, 5-thread safety stitch, and 2 or 3 needle coverstitch.
The Juki MO-735 can handle all types of fabrics from ultra light weight to heavy weight, and the most difficult-to-feed materials.
Top Features
Serging Precision

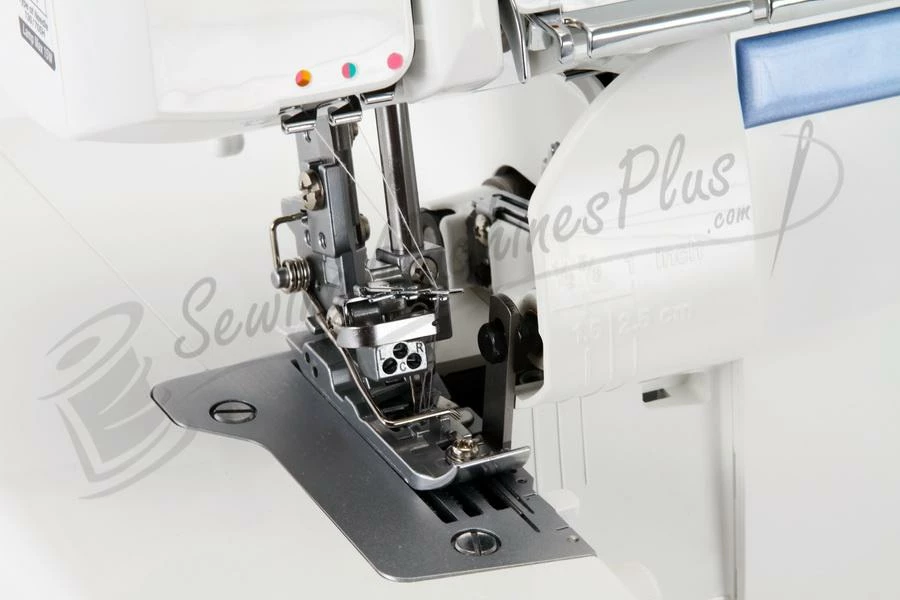

The built-in seam guide takes the guesswork out of seam allowances. Just use the conveniently located gauge on the guard cover and serge away, creating accurate seam allowances as you go.
Up and Out of the Way
The upper knife arm can be effortlessly released with a press of a button to provide more sewing room. This is useful when working in coverstitch mode, or when do not need to trim the fabric edge.
Stitches
- 4-thread coverstitch, wide (5.0 mm)
- 3-thread coverstitch, wide (5.0 mm)/narrow (2.5mm)
- 2-thread chainstitch seam, top and bottom
- 5-thread safety seam, wide
- 4-thread overlock seam
- 3-thread overlock seam, wide/narrow
- 3-thread super-stretch
- 3-thread flatlock seam
- 3-thread Blank Stitch, wide/narrow
- 3-thread rolled seam
- 3-thread rolled hem
- 2-thread overlock seaM, wide/narrow
- 2-thread flatlock seam, wide/narrow
- 2-thread rolled hem
Convenience Features:
- Cut/Sew/Finish in One Operation
- Lay-in Type Thread Tension Slots
- Color-Coded Threading

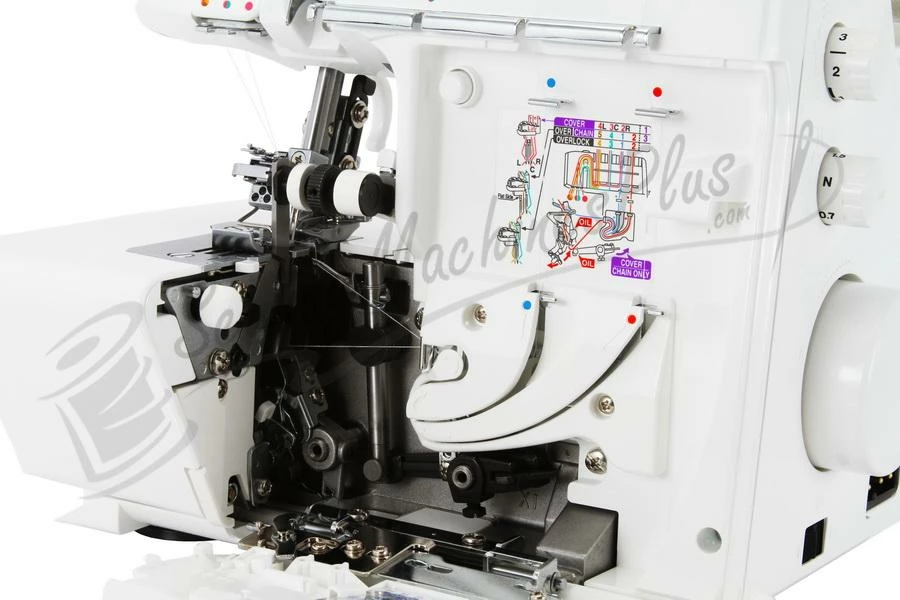

- Automatic Looper Threading
- Slit-Type Molded Looper Threading Paths
- Adjustable Stitch Length (external)
- Adjustable Differential Feed (external)
- Adjustable Lower Knife
- Retractable Upper Knife
- Automatic Rolled Hemming
- 2/3 Thread Conversion Cap
- Wide Overedge Width (5 – 9mm)
- Higher Presser Foot Lift
- Sewing Light
- Micro Safety Switch
Downloads
Click Here to Download The Juki MO-735 Brochure (PDF)
Download
Click Here to Download The Juki MO-735 Instruction Manual (PDF)
Download
Click Here to Download The Juki MO-735 Threading and Stitch Training (PDF)
Download
Click Here to Download The How to Thread Juki MO-735 (PDF)
Download
Specifications
- Sewing Speed – Max. 1500rpm
- Stitch Length – Max.4mm
- Standard – 2.5mm
- Overlocking Width – Left Needle: 7mm / Right Needle: 5mm
- Chainstitch – 10mm
- Rolled Hem – 2mm
- Coverhem – 2.5-5mm
- Differential Feed – 0.7 : 2.0 Ratio
- Presser Foot Lift – 5mm
- Needles – Household #11~#14
- Dimensions – 300 (W) x 260 (D) x 290 (H) mm
- Weight – 9kg

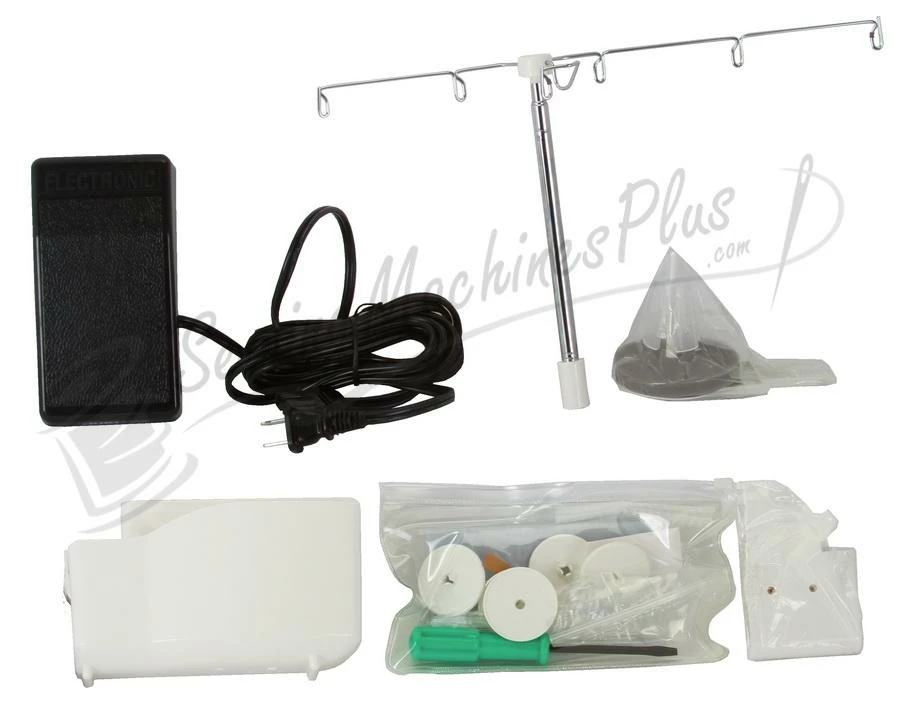

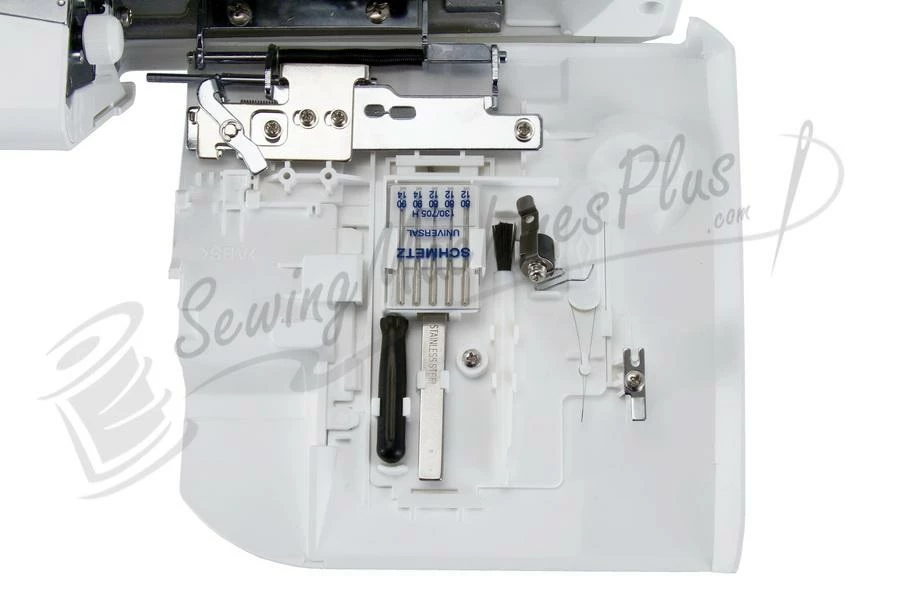

Included Accessories
- Compensating Presser Foot for Coverstitch
- Large screwdriver
- Spare lower knife
- Spool caps
- Oiler
- Thread nets
- Vinyl cover
- Needle pack
- Tweezers
- Brush & needle inserter
- Needle threader
- 2/3 thread selector Auxiliary Bed for Chain and Coverstitch
- Waste bin
- Accessory pouch
- Instruction manual
- Foot control & power cord
Add-on SewingMachinesPlus Branded Sewing Machine Mats
AVAILABLE IN 13 COLORS AND 4 SIZES
Small 12″ x 18″ | Medium 17″ x 23″ | Large 18″ x 33″ | XL 22″ X 39″
- Medium, Large, and XL Sewing mats are 3/16″ thick
- Small Sewing mats are 1/8″ thick
- Reduces vibration to your machine
- Helps reduce noise from your machine
- Prevents scratches to the surface your machine is sitting on
- Color matches your machines brand colors
- Made of high quality Neoprene
- Wipe down with damp cloth to clean
Go to Dropdowns
Compare Similar Models
Learn More |
Learn More |
Learn More |
Learn More |
|
| Price | $1099.00 | $999.00 | $699.00 | $1299.00 |
| Customer Rating | ||||
| Differential Feed ⓘ | ✓ | ✓ | ✓ | ✓ |
| Rolled Hem Stitch ⓘ | ✓ | ✓ | ✓ | ✓ |
| Stitches Per Minute | 1,500 | 1500 | – | 1,500 |
| Number of Threads ⓘ | 5 | 4 | 4 | 4 |
| Number of Needles | 3 | 2 | 2 | 2 |
| Adjustable Stitch Length | 1-4mm | 0.75-4mm | – | 1-4mm |
| Thread Tension | Manual | Micromatic Twin Cam | Manual | Manual |
| Coverstitch ⓘ | ✓ | – | – | – |
| Chainstitch ⓘ | ✓ | – | – | – |
| Included Presser Feet | 1 | – | 3 | 1 |
| Warranty | 5 Years | 25 Years | 25 Years | 5 Years |
