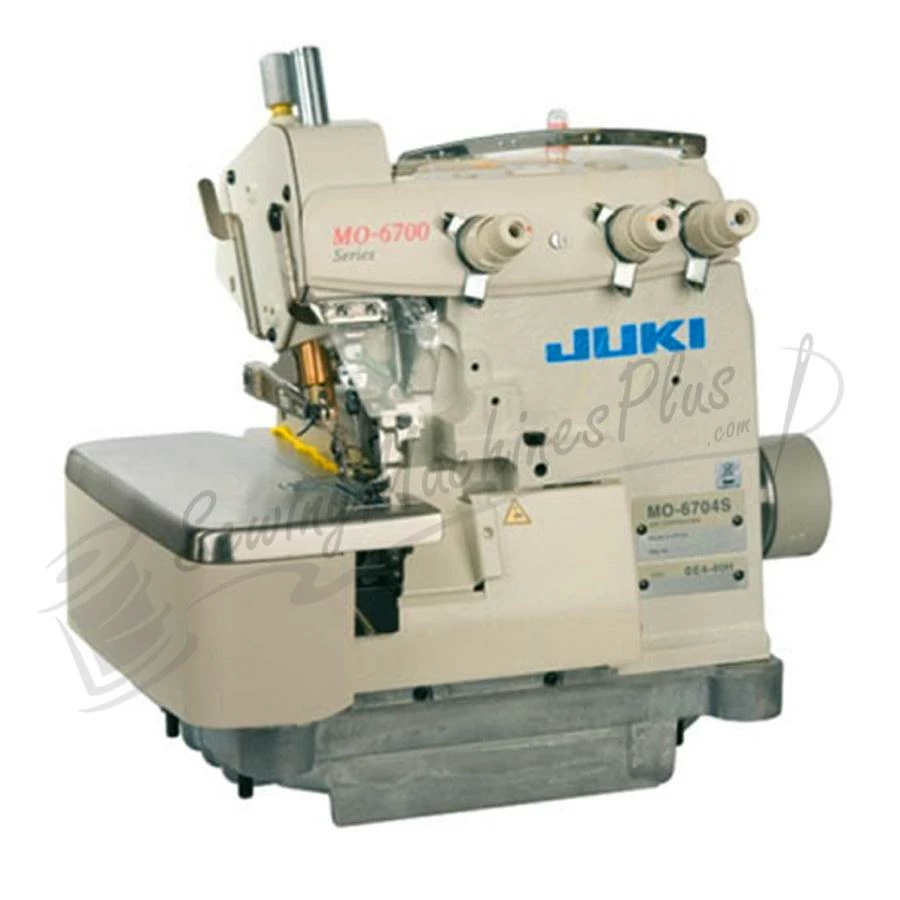

Juki MO-6704-150 Pearl 1.6mm Rolled Hem 3-Thread High-speed Overlock / Safety Stitch Industrial Serger Includes Table And Servo Motor (Table Comes Assembled)

Original price was: $353.00.Current price is: $96.99.

SKU: juki-mo-6704-150 Categories: Industrial Sewing Machines, Industrial Sewing Machines for Jeans, Sewing Machines Tag: Juki

Shop the Best Quality Online
Shop with confidence, enjoy free returns.
The quality solution for all your needs.
Friendly, efficient service, always online.

Description
Reviews (0)

How Juki/Civit Industrial Machines Are Shipped and Packaged

Juki industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. the customer is responsible for installing the machine head into the table, connecting the motor belt/belt guard and assembling the thread tree using the included hardware. The only exception to this would be the LK-1900B which ships completely assembled due to the more difficult set up.

Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items. Some machines may be subject to additional freight shipping where the machine is shipped via a crate due to the size and weight. View our freight policy here.

If you have any questions, please call our sales support team: 800-401-8151

Juki MO-6704-150 Pearl 1.6mm Rolled Hem 3 Thread High-speed Overlock / Safety Stitch Industrial Serger

Includes Fully Assembled Table and Servo Motor

A general-purpose advanced machine that responds to various kinds of sewing materials and processes.

The MO-6700S Series responds to various kinds of sewing materials and processes, producing delicate and beautiful soft-to-the-touch seams while further reducing operating noise as well as increasing durability. This is a highly advanced cost-effective machine.

Assembled Table & Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.

The machine ensures both beautiful and upgraded seam quality at higher speeds

Since the machine comes with a needle-thread take-up mechanism as well as a looper thread take-up mechanism, to offer upgraded responsiveness from light- to heavy-weight materials with a lower applied tension, it achieves well-tensed soft-feeling seams that flexibly correspond to the elasticity of the material at the maximum sewing speed of 7,000sti/min.

Devices intended for conventional JUKI machines are also interchangeable

Gauges and devices you have used with your existing JUKI machines are also interchangeable with no additional machining. This eliminates both the waste of resources and unwanted extra costs.

Further Increased Reliability

The newly adopted upper and lower needle bar bushings of the needle bar mechanism improve both the durability and reliability of the needle bar unit. The machine comes standard with a cartridge type oil filter and cooling fan for further improved reliability and durability.

The machine has been developed with the intention of providing an extended service life

The machine incorporates various mechanisms as standard, such as a differential-feed micro-adjustment mechanism and an external adjustment mechanism for adjusting the feed dog inclination as well as increasing the differential feed ratio, which can be easily adjusted to finish seams that perfectly match the material to be used. Comfortable operation is all but guaranteed, by a wider area around the needle entry, the adoption as standard of a micro-lifter feature that offers improved responsiveness to materials and provides the operator with upgraded operability, and by the reduction of operating noise and vibration, which has been achieved by designing an optimally balanced machine.

Machine Specifications

Stitch Type	Safety Stitching
Stitch Style	516
Max. Sewing Speed	7,000 Stitches per Minute
Stitch Length	1.5~4mm
Overedging width (mm)	3.2, 4.0, 4.8, 6.4
Differential Ratio for Gathering	1:2 (max. 1:4)
Differential Ratio for Stretching	1:0.7 (max. 1:0.6)
Needle Bar Stroke	24.5mm
Inclination Angle of the Needle	20°
Needle	DCx27 (excluding some subclass model)
Max. Lift of the Presser Foot	7mm (excluding some subclass model)
Max. Presser Foot Pressure	63.7N (6.5kgf)
Weight of Machine Head	28kg
Lubrication	Automatic
Lubricating Oil	Juki Machine Oil 18 (equivalent to ISO VG18)

Motor Options

Clutch motors operate at a fixed speed, typically between 1725 – 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

They consume up to 90% less energy than clutch motors
1/3 lighter than clutch motors
Reverse motor rotation with the flick of a switch
Nothing to wear or adjust
Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don’t require high speed stitching.
