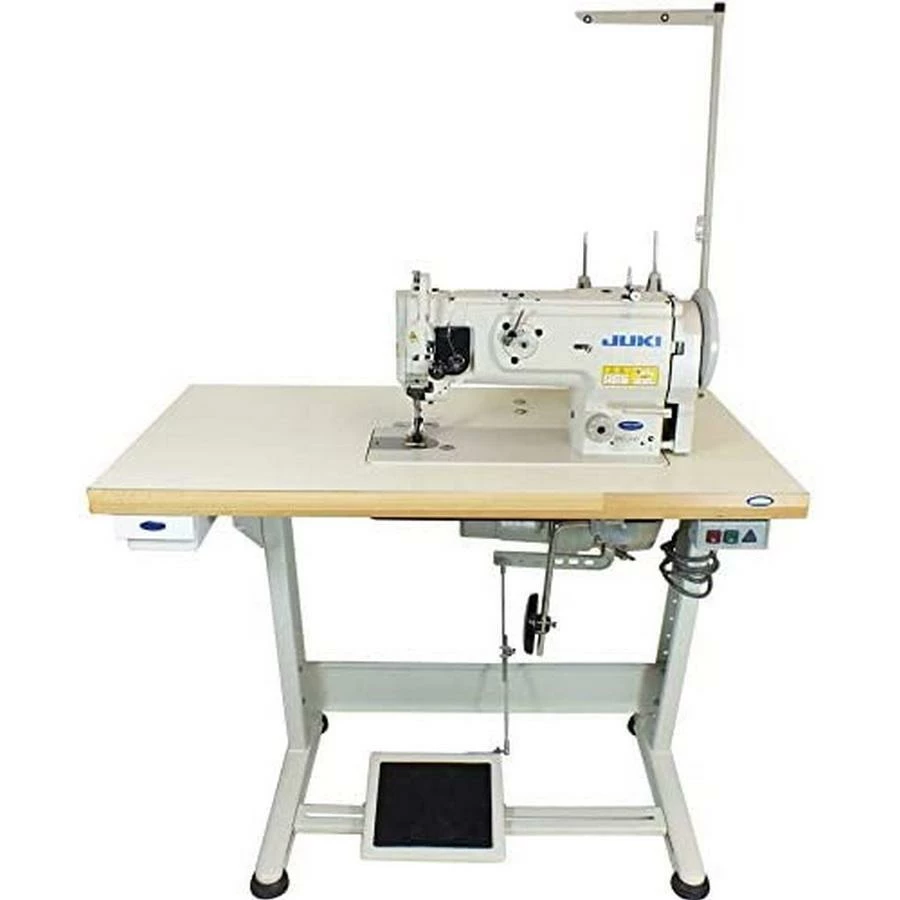

Juki DNU-1541 Single Needle Walking Foot Lockstitch Industrial Machine W/ Table & Motor (Table Comes Assembled)
Original price was: $382.00.$99.99Current price is: $99.99.
- Shop the Best Quality Online
- Shop with confidence, enjoy free returns.
- The quality solution for all your needs.
- Friendly, efficient service, always online.
How Juki/Civit Industrial Machines Are Shipped and Packaged
Juki industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. the customer is responsible for installing the machine head into the table, connecting the motor belt/belt guard and assembling the thread tree using the included hardware. The only exception to this would be the LK-1900B which ships completely assembled due to the more difficult set up.
Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items. Some machines may be subject to additional freight shipping where the machine is shipped via a crate due to the size and weight. View our freight policy here.
If you have any questions, please call our sales support team: 800-401-8151
Includes Fully Assembled Table and Servo Motor
Juki DNU-1541 Single Needle Unison Feed Walking Foot Lockstitch Industrial Machine
Double-capacity Hook
With its reliable feed and consistent seam quality, the machine responds outstandingly to the sewing of heavy materials.
With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, this Juki walking foot sewing machine for sale offers excellent sewing capabilities and responsiveness. The alternating vertical movements of the walking foot and presser foot are as large as 6.5mm. In addition, the ratio between alternating vertical movements of the walking foot and presser foot remains unchanged even when the material thickness changes. Thanks to this feature and the adoption of a new method of rectangular feed that prevents needle from fraying, the Juki walking foot machine sews multi-layered parts of a material with consistent stitching pitch while preventing stitch gathering.
Package includes a Fully Assembled Table & a Servo Motor
This Package includes a Fully Assembled Table and a Servo Motor.
Table and Motor may differ from the image shown.
Key Features
Excellent operability and maintainability.
The stitch length can be easily selected by the stitch dial. The machine’s enhanced operability features include a clear view of the area around the needle, placement of the bobbin thread winder on the front face of the machine arm, and a large handwheel(160mm).
A knee-lifter mechanism is built in the bed. This reduces the pressure required to operate the knee-lifter and facilitates setup. The machineÂ’s full-open-type top cover design makes adjusting works easier.
The machine comes with a lubricating mechanism that uses a centralized oil wick. This substantially reduces the time and trouble required for oiling the machine. (Hook : automatic.) A walking foot mechanism is built into the machine arm to prevent oil from scattering.
Machine Specifications
- Max. Sewing Speed: 2,500 Stitch per Minute
- Max. Stitch Length: 9mm (forward / backward)
- Needle Bar Stroke: 36mm
- Lift of the Presser Foot by Hand: 9mm
- Lift of the Presser Foot by Knee: 16mm
- Thread Take-Up: Slide Type
- Amount of Altering Vertical Movement: 2.5~6.5mm
- Hook: Horizontal-Axis Full-Rotary Double-Capacity Hook
- Needle (at time of delivery): 135×17 (Nm160) Nm125~Nm180
- Thread: #30~#5, B46~B138, Nm=60/3~15/3
- Pitch Changing Method: By Dial
- Lubrication: Centralized Oil Wick Lubrication (hook:automatic)
- Lubricating Oil: Juki New Defrix oil No.2 (equivalent to ISO VG32)
- Distance from Needle to Machine Arm: 264mm
- Bed Size: 477x178mm
- Motor Output: 550W
- Weight of the Machine Head: 36.5kg
Motor Options
Clutch motors operate at a fixed speed, typically between 1725 – 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.
Some other advantages of the Servo Motor include:
- They consume up to 90% less energy than clutch motors
- 1/3 lighter than clutch motors
- Reverse motor rotation with the flick of a switch
- Nothing to wear or adjust
- Adjusted speed remains the same no matter how hard the pedal is pressed
Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don’t require high speed stitching.
Optional T-Leg Table Stand with Wheels Upgrade
Features:
- Adjustable Height
- Caster Wheels
- Heavy Duty Steel Construction
Downloads
Instruction Manual
Brochure
