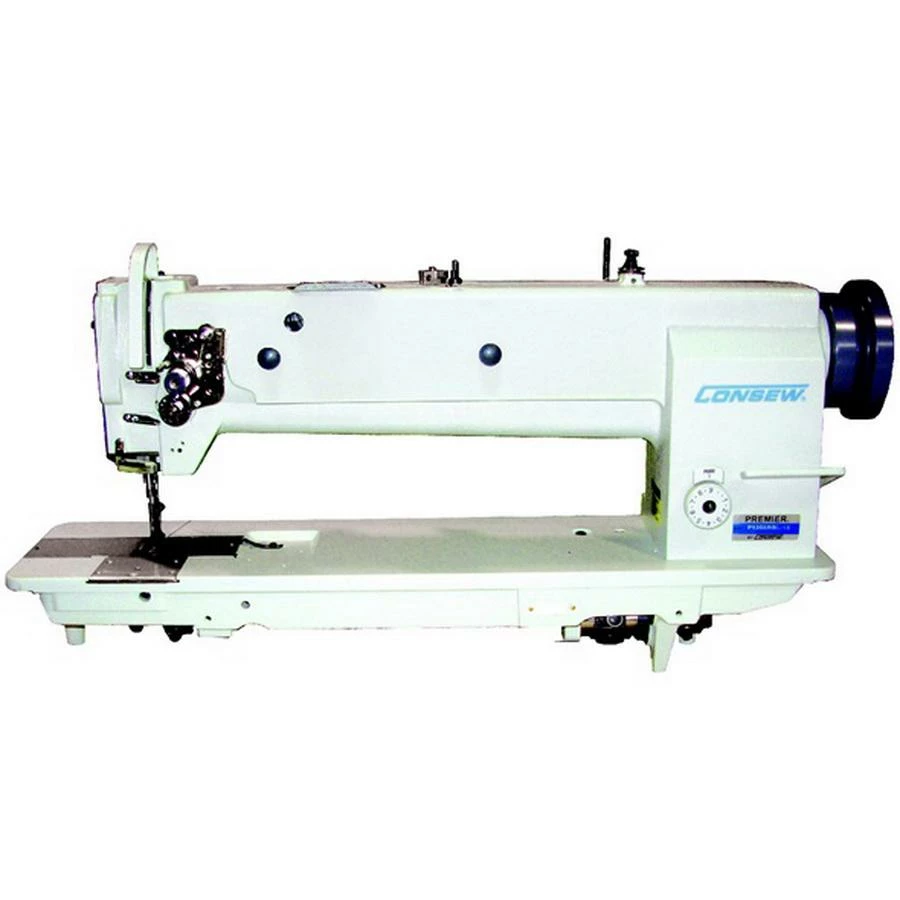

Consew Premier 1255RBL-18 Single Needle Long Arm With Assembled Table And Servo Motor

Consew Premier 1255RBL-18 Single Needle Long Arm With Assembled Table And Servo Motor - Image 2

Consew Premier 1255RBL-18 Single Needle Long Arm With Assembled Table And Servo Motor

Original price was: $302.00.Current price is: $98.99.

SKU: smp-con1255rbl-18 Categories: Sewing Machine Selection, Sewing Machines Tag: Consew

Shop the Best Quality Online
Shop with confidence, enjoy free returns.
The quality solution for all your needs.
Friendly, efficient service, always online.

Description
Reviews (0)

How Consew Industrial Machines Are Shipped and Packaged

Consew industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. The customer is responsible for installing the machine head into the table, connecting the motor belt/ belt guard and assembling the thread tree using the included hardware.

Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items. Some machines may be subject to additional freight shipping where the machine is shipped via a crate due to the size and weight. View our freight policy here.

If you have any questions, please call our sales support team: 800-401-8151

Consew Premier 1255RBL-18 Single Needle Long Arm Sewing Machine

With Assembled Table and Servo Motor

The Consew P1255RBL-18 Single Needle Long Arm Sewing Machine contains a variety of features the include, but not limited to: drop feed, needle feed, walking foot and is a high quality lockstitch machine.

Features

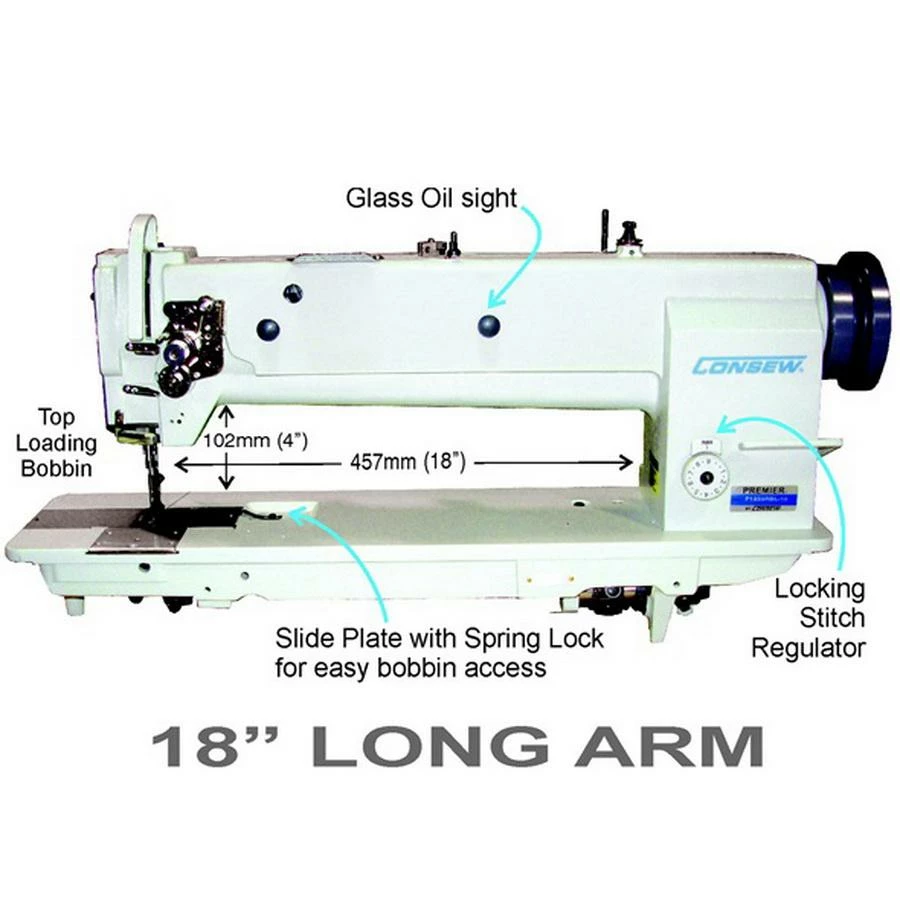

Long Arm with 18 Working Space
Large Vertical Axis Automatically Oiled Hook
Oil Pump System with Adjustable Oil Flow
Upper Oil Glass Sight
Barrel-type, Locking Stitch Regulator
Large Top-Loaded Bobbin
Quick Tension Release
Safety Clutch
Reverse
Locking Slide Plate for easy bobbin access
Adjustable Take-Up Thread Guide for thread loop timing

Specifications

Speed, Max. (S.P.M.): 2000 (*Speed depends on thread, material and operation)
Presser Foot Lift: By Hand – ⁵⁄₁₆” (8 mm)/By Knee – ³³⁄₆₄” (13mm)
Needle Bar Stroke: 1 ²⁷⁄₆₄” (36 mm)
Stitch Length, Max: 2 s.p.i. (9 mm)
Work Space: 18″ x 4 ¼” (457 x 110 mm)
Working Height Under Arm: 4″ (102mm) maximum
Needle: 135 x 17e
Number of Needles: 1 (Single)
Feeding Mechanism: Walking Foot
Workspace: Long Arm
Standard or Full Function: Standard Functions
Stitch Type: 301

Table & Clutch Motor

This Package includes a Fully Assembled Table and a Servo Motor.

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind “The Speed”. Regardless of brand or price, motors come in two different configurations:

Variable Speed Servo Motor
Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 – 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

They consume up to 90% less energy than clutch motors
1/3 lighter than clutch motors
Reverse motor rotation with the flick of a switch
Nothing to wear or adjust
Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don’t require high speed stitching.

This machine package includes a fixed-speed servo motor.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.

Downloads

Parts & Manual

Download

Optional Cool-Lite LED-10 Magnetic Light

Choose your add-on LED-10 Light in the Dropdown Menu above

This Magnetic Lamp features 10 LED lights that cast a bright white across the target area. The magnetic attachment makes the lamp great for mounting on any metal surface. Light is powered by an included AC plug.
