Consew CN2073R-DSM Industrial Machine With Assembled Table And Motor
Original price was: $337.00.$96.99Current price is: $96.99.
- Shop the Best Quality Online
- Shop with confidence, enjoy free returns.
- The quality solution for all your needs.
- Friendly, efficient service, always online.
How Consew Industrial Machines Are Shipped and Packaged
Consew industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. The customer is responsible for installing the machine head into the table, connecting the motor belt/ belt guard and assembling the thread tree using the included hardware.
Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items. Some machines may be subject to additional freight shipping where the machine is shipped via a crate due to the size and weight. View our freight policy here.
If you have any questions, please call our sales support team: 800-401-8151

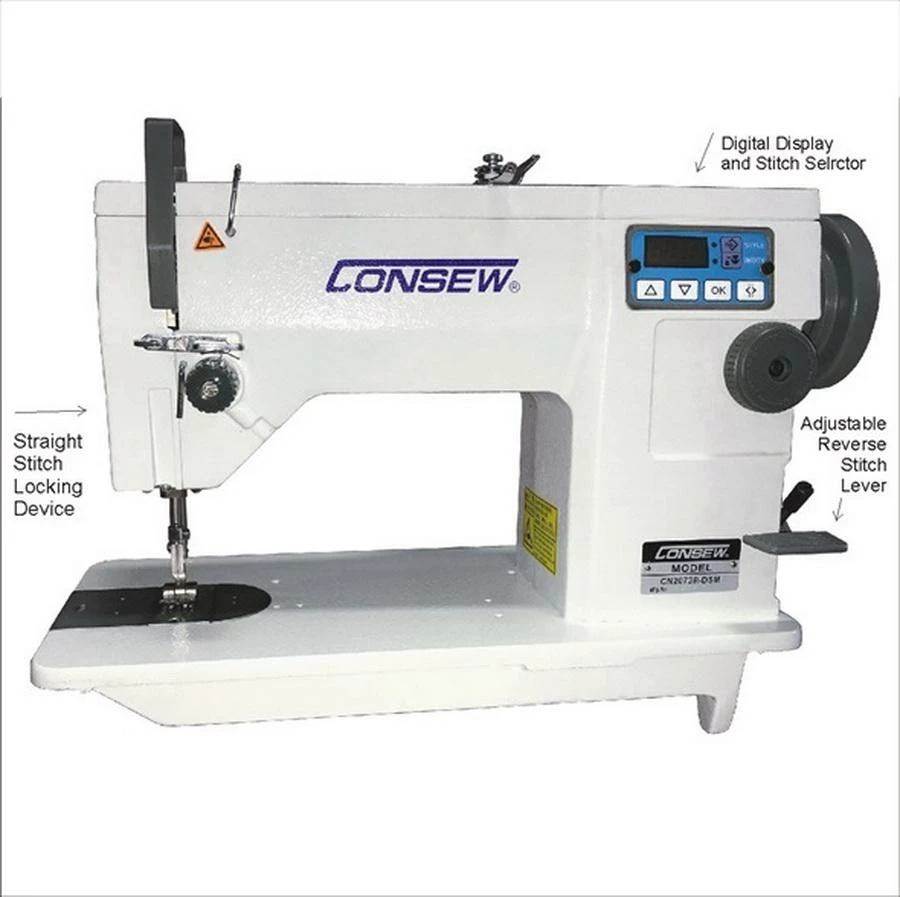

Consew CN2073R-DSM Industrial Machine With Assembled Table and Motor
The Consew CN2073R-DSM contains a variety of features that include, but are not limited to: Microprocessor Control with access to 200 Stitch Patterns, Combination Zig-Zag and Straight Stitcher, Reverse Feed, Adjustable Stitch Length, Adjustable reverse stitch length.
Applications:
- For sewing light to medium heavy weight fabrics including clothing, shoes and caps, leather articles, bags and more
- For attaching lace, elastic band, bottom hemming, edge stitching, butted seaming, applique and similar operations
- Decorative seaming on thin, medium and thick fabrics. For bras, underwear, gloves ,garments, shoes, caps, leather, bags, etc.
Features:
- Microprocessor Control with access to 200 Stitch Patterns
- Combination Zig-Zag and Straight Stitcher
- Reverse Feed
- Adjustable Stitch Length
- Adjustable reverse stitch length
Specifications:
| Category | Specification |
|---|---|
| Number of Needles | 1 |
| Stitch Type | 304/301 + Patterns |
| Speed, Max (S.P.M.) | 1800 |
| Clearence Under Presser Foot | Foot 23/64″ (9 mm) , Hand 15/64″ (6 mm) |
| Stitch Length | 5 s.p.i. (5mm) |
| Work Space | 8 5/16″ (211mm) |
| Needle | DPx5 |
| Bed Size | 7″ 15 11/16″ (178mm x 398.5mm) |
| Needle Bar Stroke | 1 6/25″ (3.15mm) |
| Max Stitch Width | 11/32″ (9mm) |
Table & Servo Motor
This Package includes a Fully Assembled Sewing Table and a Servo Motor.
Optional Cool-Lite LED-10 Magnetic Light
This Magnetic Lamp features 10 LED lights that cast a bright white across the target area. The magnetic attachment makes the lamp great for mounting on any metal surface. Light is powered by an included AC plug.
Specifications:
- Power: 0.5 W
- Voltage: AC110-240V
- Frequency: 50/60 Hz
- LED10 connects to motor switch
- Application: Any sewing machine
- Feature: Has convenient on/off switch on magnet mounting
