Consew 199R Single-needle, Drop-feed, W/ Straight Stitch & Zigzag Stitch Type-1A W/ Table & Servo Motor (Table Comes Assembled)

Original price was: $370.00.Current price is: $97.99.

SKU: consew-199R-1A Categories: Commercial Sewing Machines, Industrial Sewing Machines, Sewing Machines Tag: Consew

Shop the Best Quality Online
Shop with confidence, enjoy free returns.
The quality solution for all your needs.
Friendly, efficient service, always online.

Description
Reviews (0)

How Consew Industrial Machines Are Shipped and Packaged

Consew industrial machine heads are packed in a secured box or crate and will be shipped under the assembled table on a skid or pallet. The customer is responsible for installing the machine head into the table, connecting the motor belt/ belt guard and assembling the thread tree using the included hardware.

Disclaimer: Due to the weight of the table with motor, there might be some minor marring or scratches due to shipping. This is normal when shipping industrial machines because of the weight associated with the items. Some machines may be subject to additional freight shipping where the machine is shipped via a crate due to the size and weight. View our freight policy here.

If you have any questions, please call our sales support team: 800-401-8151

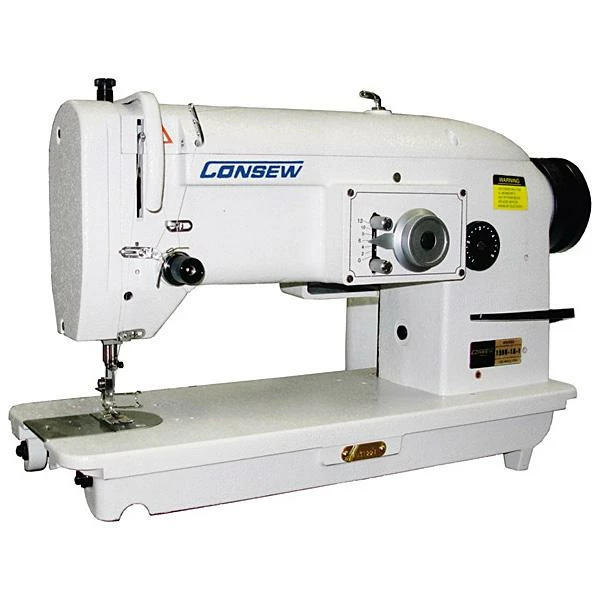

Consew 199R Type-1A Sewing Machine Single-needle, Drop-feed, w/ Straight Stitch & Zigzag Stitch

with Table & Servo Motor Fully Assembled

Table & Servo Motor

This Package includes a Fully Assembled Table and a Servo Motor.

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine

Consew 199R is a single-needle, drop-feed, zig-zag lockstitch machine with a horizontal axis transverse rotary hook, reverse feed, and combination zig-zag and straight stitch function.

199R – Series Stitches

Stitch Type-1A: 2-step / 1-stitch zig-zag (Currently Viewing This Product)
Stitch Type-2A: 3-step / 2-stitch zig-zag
Stitch Type-3A: 4-step / 3-stitch zig-zag

Specifications

Max Speed (SpM) (speed depends on thread, material and operation)

Zig-Zag Stitch – 3000 for stitches -1A and -3A; 2700 for stitch -2A
Straight Stitch – 3200 for stitches -1A and -3A; 3000 for stitch -2A

Clearance Under Foot – 25/64″ (10 mm)
Needle Bar Stroke – 1 11/32″ (34 mm)
Max Stitch Length – 5 s.p.i. (5 mm)
Needle – 16 X 95
Bobbin Metal – B75
Bobbin Pre-wound – L
Hook – B70
Work Space – 10″ (255 mm)
Bed Size – 7″ x 18 7/8″ (178 x 480 mm)
Zig-Zag Max Width – 3/8″ (9.5 mm)

Features

Horizontal axis transverse rotary hook
Wide Zig-Zag – Locking Zig-Zag width regulator
Straight stitcher when zig-zag is set to 0mm
Upper feed mechanism helps avoid slippage when sewing
Reverse stitching
Maximum width of zig-zag : 3/8″ (9.5 mm)
Long arm with 10″ free space between needle and arm

Alternate models

Stitch Type-1A

(Currently Viewing) Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials

Stitch Type-2A

For sewing elastic and other stretch materials, as well as for ornamental stitching
For stitching such products as boat and truck covers, tents, awnings, sails, parachutes, tarpaulins, canvas bags also many items of military and naval equipment
Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
Especially desirable where reinforced stitch is necessary
Also available with special fittings for rope tacking operations
Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment

Stitch Type-3A

Performs similar operations as Model 199R-2A-1 with the added advantage of making an additional stitch for extra reinforcement

Motor Options

With so many options available for motors when we talk about replacing or buying a motor for our industrial sewing machine, there is one important point to keep always in mind “The Speed”. Regardless of brand or price, motors come in two different configurations:

Variable Speed Servo Motor
Adjustable-Speed Servo Motor

Clutch motors operate at a fixed speed, typically between 1725 – 3450 rpm, depending on the type of machine. Servo Motors on the other hand are speed adjustable. The two major advantages of the Servo Motor are that you can control the speed of the motor and that the motor is completely silent when the pedal is not engaged.

Some other advantages of the Servo Motor include:

They consume up to 90% less energy than clutch motors
1/3 lighter than clutch motors
Reverse motor rotation with the flick of a switch
Nothing to wear or adjust
Adjusted speed remains the same no matter how hard the pedal is pressed

Most of our customers find that the sewing machine is much easier to control with a Servo motor because of the speed control. This is especially helpful for beginner sewers but also for projects that simply don’t require high speed stitching.

This machine package includes a Servo motor.

If you need help deciding what option is best for you, give us a call at 800-401-8151, and have one of our experts walk you through the decision.

Optional Cool-Lite LED-10 Magnetic Light

Choose your add-on LED-10 light with the Dropdown Menu above

This Magnetic Lamp features 10 LED lights that cast a bright white across the target area. The magnetic attachment makes the lamp great for mounting on any metal surface. Light is powered by an included AC plug.

Specifications:

Power: 0.5 W
Voltage: AC110-240V
Frequency: 50/60 Hz
LED10 connects to motor switch
Application: Any sewing machine
Feature: Has convenient on/off switch on magnet mounting
