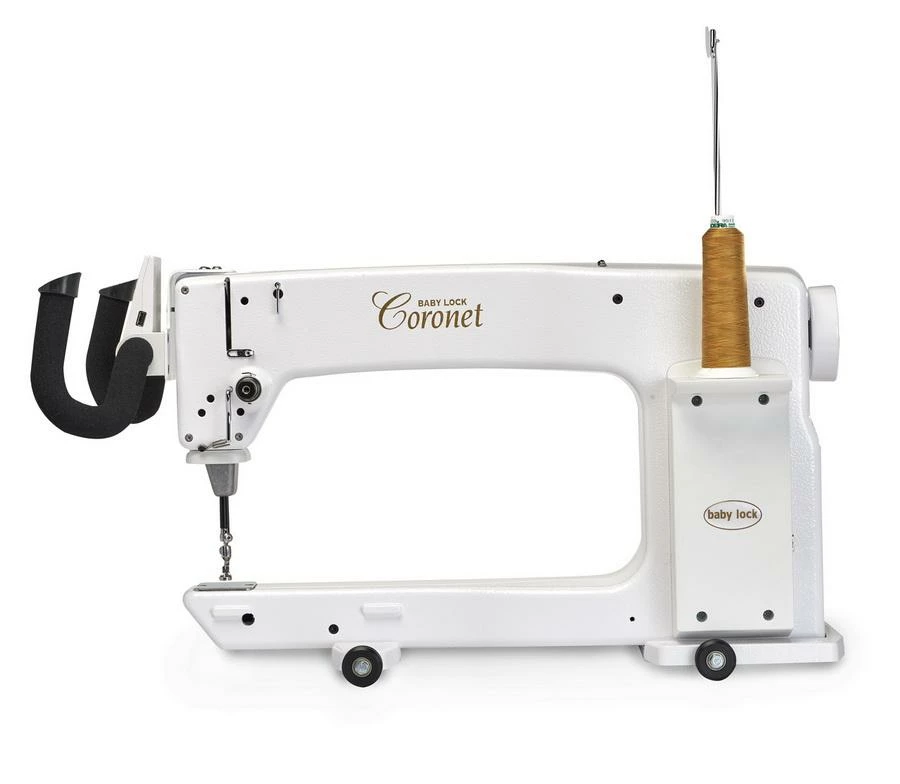

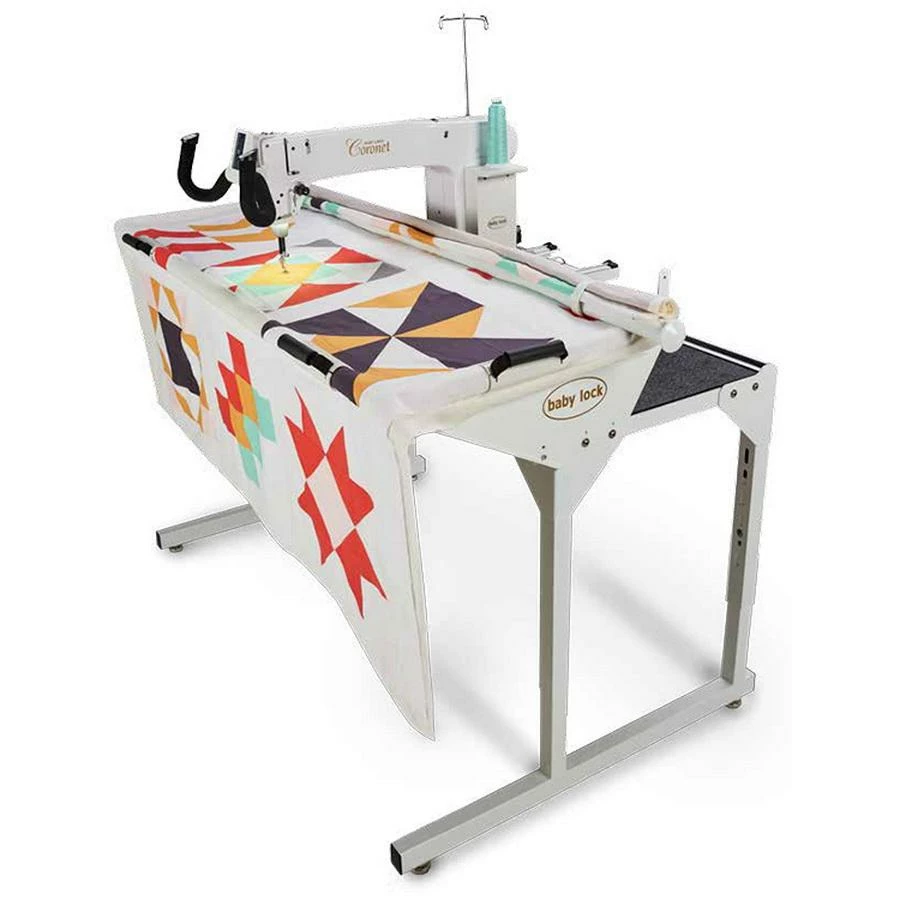

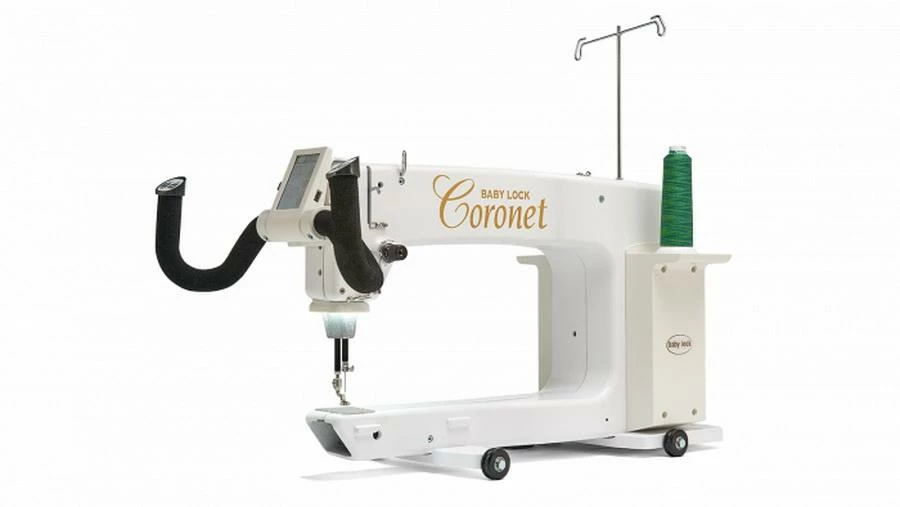

Baby Lock Coronet Long Arm Quilting Machine With 5 Foot Coronet Frame and Bobbin Winder
The Coronet longarm quilting machine opens up worlds of possibilities for first-time longarm quilters. The included 5′ frame fits easily into the smallest studio, yet the Coronet has a huge 16″ workspace that gives quilters complete control over their compositions from beginning to end.
Features
Specifications and Features
Technichal Features
- 16” workspace x 8-1/4” high
- 28 Integrated high-intensity LED light ring illuminating quilting area
- 1/4” Interchangeable Hopping Foot
- Holds the fabric in place while the needle completes the stitch
- Hopping foot stroke/lift – 5mm
- Compatible with standard 1/4” thick rulers and templates
- Maximum sewing speed of 1,800 spm
- Manual Stitch Mode allows manual operation of the machine by selecting one of the two customizable pre-selected needle speeds.
- Stitch Regulator is built-in and regulates your selected stitch length from 4 to 18 stitches per inch.
- Stitch regulated mode follows your lead and is best for ruler work and tracing patterns.
- Cruise Stitch regulated mode allows the needle to immediately begin stitching at the percent speed chosen.
- Included Front and Optional Back Handles for easy control and less fatigue.
- Provides control from two sides of the machine
- Easy-to-reach rubber grips for comfort
- Handle Bar Control Buttons at your fingertips
- Needle Up/Down
- Start/Stop
- Speed Up
- Speed Down
- Color LCD touch screen shows:
- LED lighting options
- Stitch counters
- Diagnostics
- Calculator
- Timers
- Hardware and Software info
- Stitch regulated and manual modes
- Programmable Needle Positioning: Needle Up/Down
- Needle bar stroke – 35.3mm
- Uses Needle System 134, slight ballpoint needle
- Change needles easily with large needle thumb screw
- High-speed rotary hook
- Large capacity “M” class bobbin
- Integrated USB Ports
- External electric bobbin winder with variable speeds
- Adjustable tensions for any type of thread: cotton, polyester, rayon, metallics, holographic
- Thread antenna accommodates guiding thread from larger thread spools
- Two timers
- Reminder timer can be set to sound alarm after a period of time.
- Project timer tracks time spent stitching on a quilt project
- Can use patterns, stencils, threads, 1/4” thick rulers and templates that commercial quilters use
Additional Information
- 4 Languages (English, Spanish, French, German)
- Solid cast aluminum construction
- Internal brushless DC motor
- Machine weight – 43.4 lbs. • Made in U.S.A. of globally sourced parts
- Warranty: 10-year limited manufacturerÂ’s warranty, 5-year parts, 5-year computer, 5-year electrical, 90-day labor
- Ask your Baby Lock Retailer about machine maintenance programs.
Included Accessories
- Coronet Frame
- 5 “M” size metal bobbins
- 2 Packs of needles (Size 16 and 18)
- Thread antennae
- Hopping foot
- Interchangeable Open Toe Hopping Foot
- Oiler
- Allen wrenches
- 8mm open wrench
- Cleaning brush
- Screwdriver
- Instruction manual
- Quick Reference Chart
- 60-Day Love of Knowledge Trial
Optional Accessories
- Rear handle bars and display – Item# BLCT16-RH
- Quick Set Tension – Item# BLQ-QST
- Ruler Base – Item# BLCT16-RB
- Laser Light Stylus – Item# BLCT16-LL
- Couching Foot Set – Item# BLQ-CCF
- Glide Foot – Item# BLQ-GF2
- Horizontal Spool Pin – Item # BLJ18-HS
- Adapter and Stylus Holder – Item# BLJ18-SA
- Stylus – Item# BLJ18-ST
- Quilt Pattern Boards
- Channel Lock – Item# BLJ18-CL
- Ruler and Echo Foot Set (BLQ-REFS)
- Ruler Kits (BLRK-HSLA, BLRK2-HSLA, BLRK3-HSLA)
- Rope Template (BLRT-HSLA)
- 3 Pack Metal Bobbins – Item# BLJ-BOB
- Needles:
- Size 12 – Item# 134FG-80
- Size 14 – Item# 134FG-90
- Size 16 – Item# 134FG-100
- Size 18 – Item# 134FG-110
- Size 20 – Item# 134FG-125
Downloads
Brochure
Download
Manual
Download
Optional Pro-Stitcher
The HQ Pro-Stitcher quilting system integrates Handi Quilter’s world-class quilting machines with the latest computer technology to help you finish more quilts. HQ Pro-Stitcher guides the machine to quilt any design you want to use, create, or customize. It works with all Handi Quilter stitch-regulated quilting machines: HQ Sixteen, HQ Simply Sixteen, HQ Avanté, HQ Fusion, and HQ Infinity. Expand your quilting possibilities with this easy-to-learn, easy-to-use, computerized system and have fun finishing more quilts! Using integrated HQ technology, the HQ Pro-Stitcher offers the best of both worlds: computerized quilting and free-motion quilting in the same package.
Key Features of the Pro-Stitcher Software
- 12-inch color touchscreen computer mounted on the HQ stitch-regulated quilting machine
- Operate entire system from one screen
- Includes more than 800 designs, including a designer showcase of motifs from your favorite designers
- Switch between computer-guided and free-motion quilting at the touch of a button
- Resize, Rotate and Repeat designs to fit specific areas
- Skew or Align designs to fit any area with three or more points
- Move designs into position by simply moving your finger across the screen
- Stretch and resize a design using on-screen handles
- Define and Fill an area with a design, using 2-corner (rectangles) or multi-point (any shape)
- Save and move areas
- Two-Point Rotation for border designs and fitting odd angles
- Precisely reposition designs using the Center Point, Start Point, End Point, any corner of the design area, or any point within the design
- Crop inside or outside of your design to fit your quilt, with the option to close the jumps or leave them open
- Create new start/stop points
- Place designs into borders and other odd-shaped spaces
- Customizable speed and stitches-per-inch
- Micro Tie-Off function
- Ability to read most .hqf, .txt and .qli digital quilt patterns
- Seamless integration with Pro-Stitcher Designer for designing and adjusting your own patterns at the machine (optional software)
- Mark and record multiple points for accurate stitch-in-the-ditch quilting
- On-screen Grid and Ruler to measure designs or area on quilt
- Reorder designs for stitching
- Horizontal and vertical channel lock
- Help menus always accessible
Optional Butler Robotics System
The optional robotics upgrade is an easy-to-use computer control that turns your quilting machine into a
QUILTING MACHINE! For Quilters looking to quilt with confidence and ease, simply press GO and let
robotics
quilt simple to complex patterns
with perfection. Quilt smoothly, quickly and effortlessly!
Attaches to any stitch regulated longarm machine
Basic Edition
- 8 Inch Display
- Attaches to any stitch regulated longarm machine
- No handle bar cable or ports to connect to the long arm
- Simple machine activation prompts
- Pantograph and Block patterns
- Repeat with Autofill, Scale, Mirror, Rotate and Pattern Nesting
- Integrated help videos
- Layout creation and saving
- Save altered patterns
- 10 levels of undo
- 160 Free Patterns
- 1 Exclusive Pattern from Epic Quilt Studio
Deluxe Edition
- 10 Inch Display
- Attaches to any stitch regulated longarm machine
- No handle bar cable or ports to connect to the long arm
- Simple machine activation prompts
- Pantograph and Block patterns
- Repeat with Autofill, Scale, Mirror, Rotate and Pattern Nesting
- Integrated help videos
- Layout creation and saving
- Save altered patterns
- Record, Channel Locks
- Quilt Layout Guide
- Text Feature, crop feature
- Morph Feature
- Automatic Scaling
- Point to Point
- 260 Patterns
- 2 Exclusive Patterns from Epic Quilt Studio
Add on in the dropdown menu
Professional Edition
- 12 Inch Display
- Attaches to any stitch regulated longarm machine
- No handle bar cable or ports to connect to the long arm
- Simple machine activation prompts
- Pantograph and Block patterns
- Repeat with Autofill, Scale, Mirror, Rotate and Pattern Nesting
- Integrated help videos
- Layout creation and saving
- Save altered patterns
- Record, Channel Locks
- Quilt Layout Guide
- Text Feature, crop feature
- Morph Feature
- Automatic Scaling
- Point to Point
- Additional Fonts
- Rapid fire tracing
- Point to Point Channel Locks
- 500 Free Patterns
- 3 Exclusive Patterns from Epic Quilt Studio
